The PENN Battle IV is stronger and more durable than ever before. The Battle IV features our Hydro Armor sealing system that protects critical components no matter how harsh the conditions. The BattleIV combines our proprietary CNC Gear Technology, proven HT-100 carbon fiber drag system, and a Full Metal Body to deliver a reel built to withstand the force of big fish. Ranging in size from 1000 to 10000, the Battle IV series has a model for every angler.

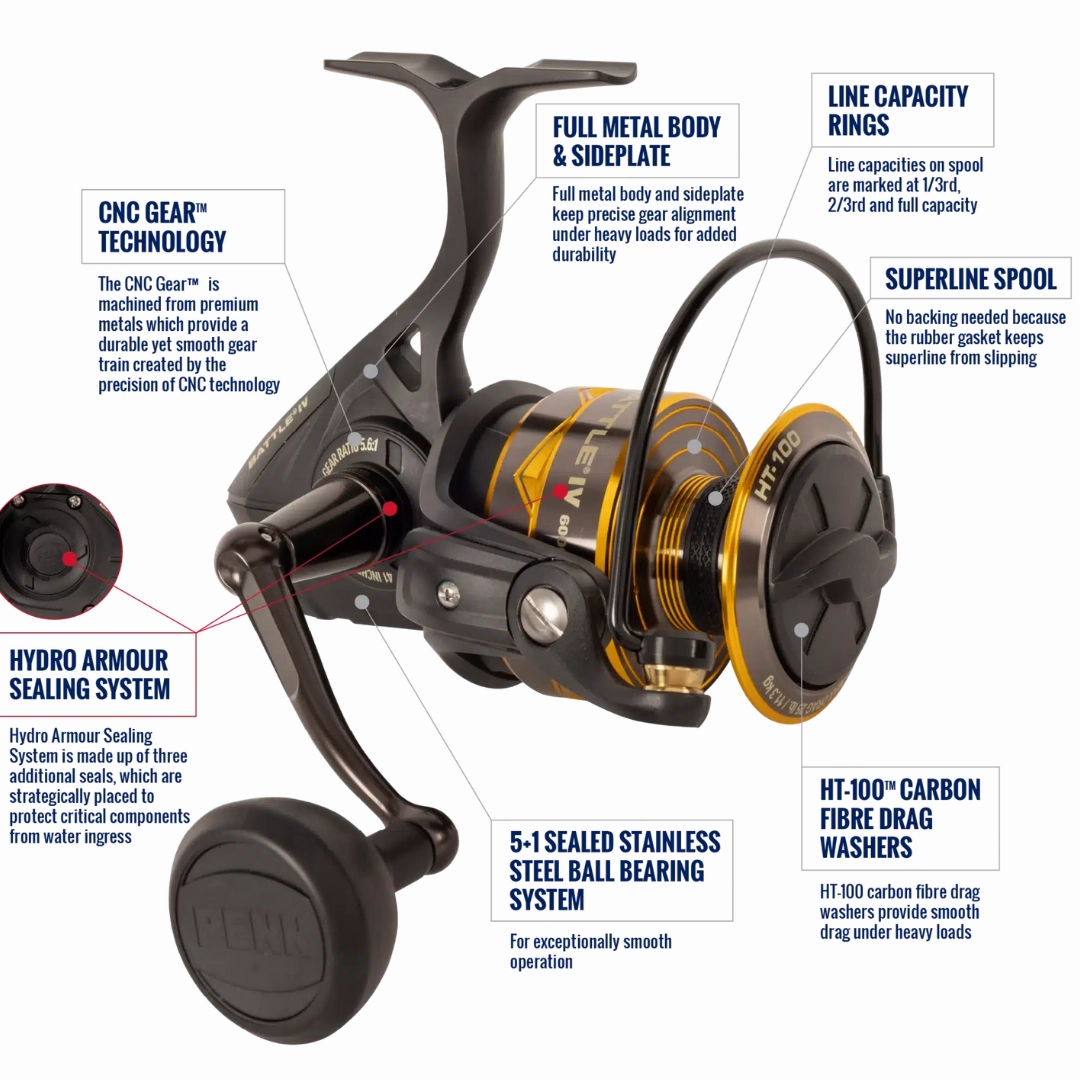

FEATURES:-
- CNC Gear Technology
- Hydro Armor system seals critical areas from water intrusion
- HT-100 carbon fiber drag washers
- 5 1 sealed stainless steel ball bearing system
- Line Capacity Rings
- Superline Spool
- Full Metal Body and sideplate
Specification:
| Model | BATTLE IV4000 | BATTLE IV5000 | BATTLE IV6000 |
| Gear Ratio | 6.2:1 | 5.6:1 | 5.6:1 |
| Max Drag | 15.0lb | 6.8kg | 25.0lb | 11.3kg | 25.0lb | 11.3kg |
| Ball Bearings | 5 1 | 5 1 | 5 1 |
| Mono Capacity (m/MM) | 245/0.28 200/0.31 150/0.36 | 205/0.36 185/0.38 125/0.46 | 305/0.38 210/0.46 190/0.48 |
| Braid Capacity (M/MM) | 330/0.25 240/0.29 170/0.36 | 385/0.29 275/0.36 220/0.38 | 450/0.36 355/0.38 305/0.41 |
| Weight | 352g | 534g | 589g |
| Line Retrieve Per Crank (in) | 37in I 94cm | 36in I 91cm | 41in I 104cm |
| Model | BATTLE IV 8000 | BATTLE IV 10000 |
| Gear Ratio | 4.7:1 | 4.2:1 |
| Max Drag | 29.0lb | 13.6kg | 40.0lb | 18.1kg |
| Ball Bearings | 5 1 | 5 1 |
| Mono Capacity (M/MM) | 310/0.46 285/0.48 210/0.56 | 360/0.56 300/0.61 210/0.71 |
| Braid Capacity (M/MM) | 435/0.41 355/0.46 315/0.48 | 705/0.41 640/0.46 450/0.48 |
| Weight | 786g | 1101g |
| Line Retrieve Per Crank (in) | 38in I 97cm | 43in I 109cm |
